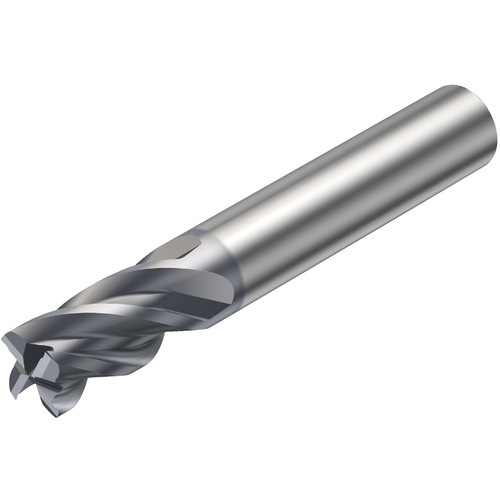

R216.T4-10030CAS14N 1620 COROMILL PLURA
SQ End Mill; 10 mm Dia. × 14 mm LOC × 10 mm Shank Dia. × 66 mm OAL ; 1 mm RE ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 14 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 66 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 1.4D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | CW|30 Degrees | Series/List # | R216.Tx..AS..N |
| Shank Type | Round |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
0.17
