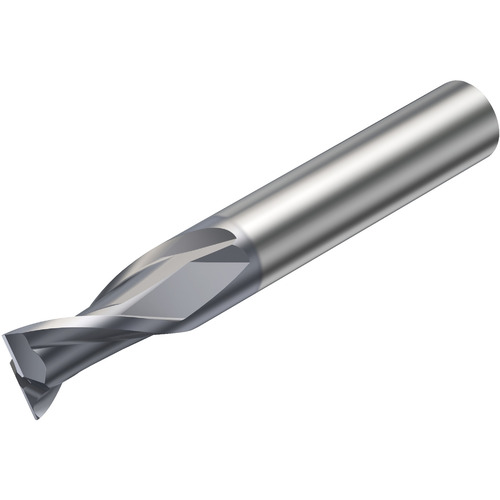

1P2300900XA1630 COROMILL
SQ End Mill; 9 mm Dia. × 16 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 2 FL ; Carbide ; AlCrN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 9 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 16 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 72 mm | Corner Chamfer Width (CHW) | 0.2 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlCrN | Length Group | 1.8D |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.3543″ |
Product Features
| Country of Origin | Italy |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
0.174
