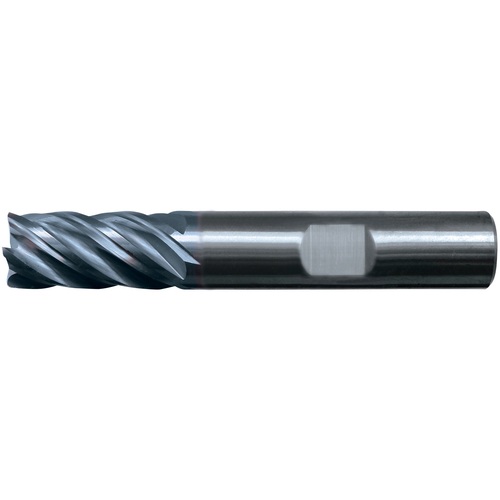

3/8″ × 3/8″ × 7/8″ × 2-1/2″ RHS / RHC Solid Carbide 5-Flute High-Performance End Mill for Ferrous Material - TiAlN
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0.02″ RE ; 5 FL ; Carbide ; AP/MAX ; Series CEM-V2-5R-TA
| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 7/8″ | Length Group | Regular |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AP/MAX | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | CEM-V2-5R-TA |
| Flute Helix Angle (FHA) | 38 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.119
