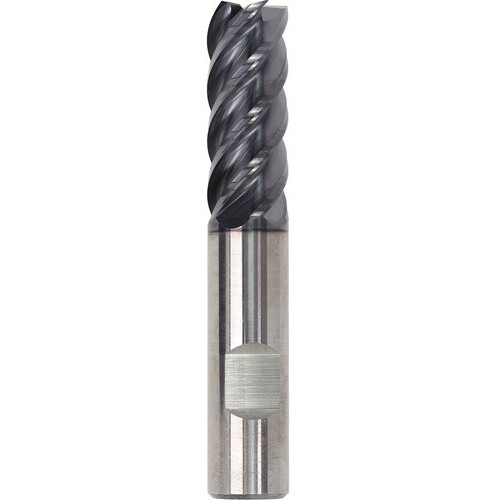

3/8 End Mill 5FL SQ TA WF - V-CARB 3/8x3/8x1x2-1/2
SQ End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0″ RE ; 5 FL ; 1-1/2″ LBS ; Carbide ; AlTiN ; Series V-CARB
| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | V-CARB |
| Shank Type | Weldon |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.126
