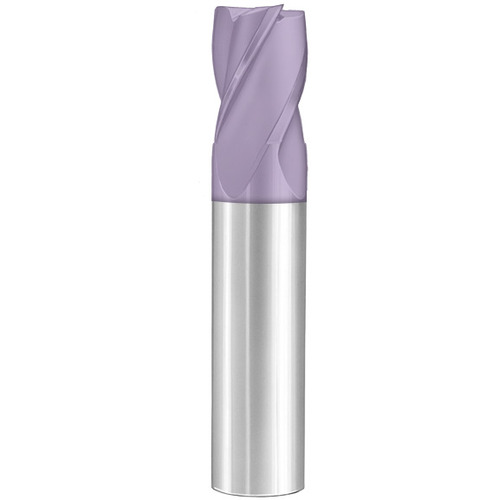

1/16 End Mill 4FL SQ TC - SER 16S 1/16x1/8x1/8x1-1/2
SQ End Mill; 1/16″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0″ RE ; 4 FL ; 1-3/8″ LBS ; Carbide ; TiCN ; Series 16S
| Cutting Diameter (DC) | 1/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1-3/8″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 16S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.007
