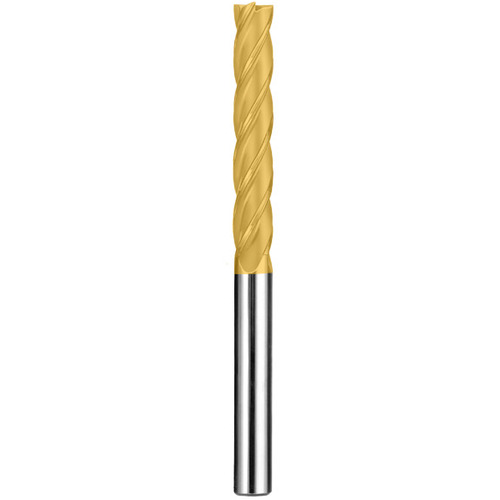

1/8 End Mill 4FL SQ TN - SER E1S 1/8x1/8x1x3
SQ End Mill; 1/8″ Dia. × 1″ LOC × 1/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; TiN
| Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
