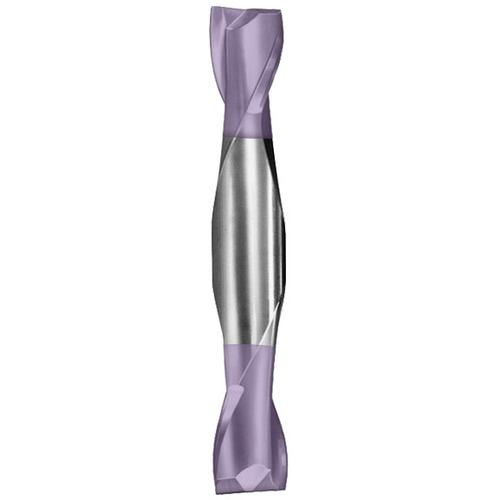

1/16 End Mill 2FL SQ TC - SER 15S 1/16x1/8x1/8x1-1/2
Square End Mill; 1/16″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; TC ; Series 15S
| Cutting Diameter (DC) | 1/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1-3/8″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Corner Radius (RE) | None |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TC | Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 15S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.010
