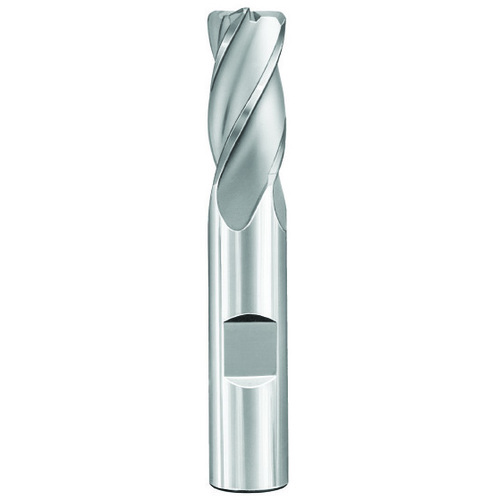

5/16 End Mill 4FL .020R - SER 01C 5/16x5/16x13/16x2-1/2
SQ End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 01C
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 13/16″ | Usable Length (LU) | 1-11/16″ |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 01C |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.096
