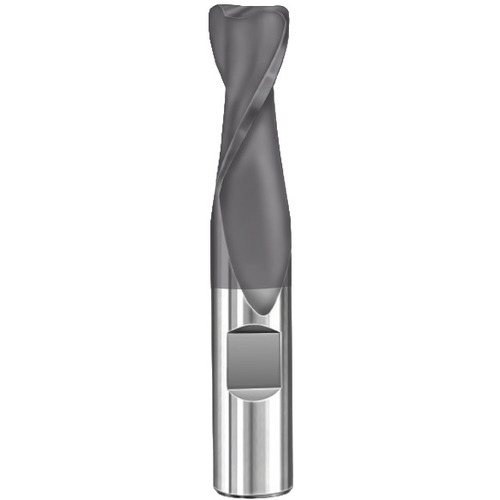

1″ End Mill 2FL .090R TA WF - SER 03C 1x1x1-1/2x4
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 03C
| Cutting Diameter (DC) | 1″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Usable Length (LU) | 1.7″ |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.09″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 03C |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.297
