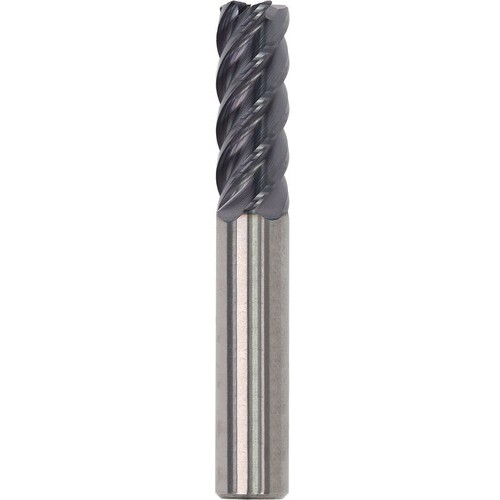

1″ End Mill 5FL .060R TA - V-CARB 1x1x2-5/8x6
SQ End Mill; 1″ Dia. × 2-5/8″ LOC × 1″ Shank Dia. × 6″ OAL ; 5 FL ; Carbide ; AlTiN ; Series V-CARB
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 2-5/8″ | Usable Length (LU) | 3-7/8″ |
| Overall Length (OAL) | 6″ | Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | V-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.18
