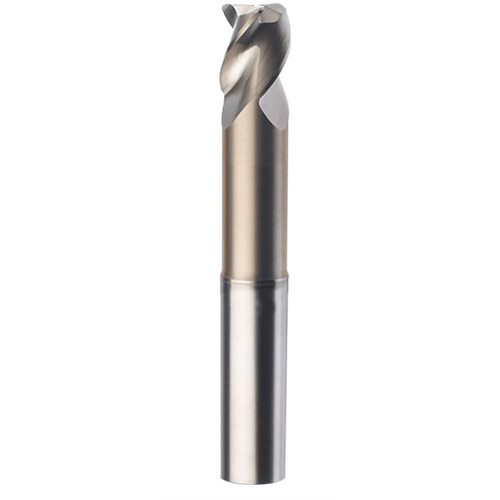

5/8 End Mill 3FL .120R - S-CARB 5/8x5/8x3/4x4
SQ End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series S-CARB
| Cutting Diameter (DC) | 5/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/4″ | Usable Length (LU) | 3-1/4″ |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.12″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | S-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.584
