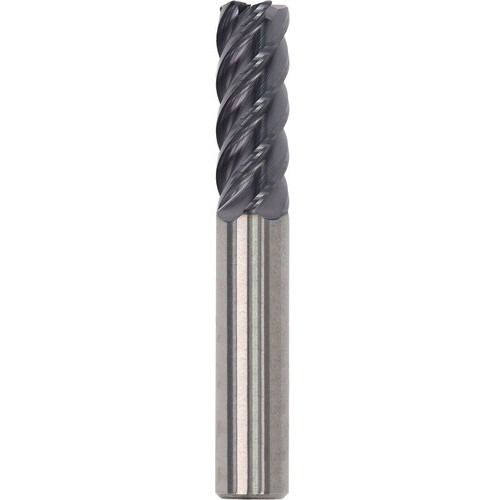

7/32 End Mill 5FL .015R TA - V-CARB 7/32x1/4x3/8x2
SQ End Mill; 7/32″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 5 FL ; Carbide ; AlTiN ; Series V-CARB
| Cutting Diameter (DC) | 7/32″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/8″ | Usable Length (LU) | 1-5/8″ |
| Overall Length (OAL) | 2″ | Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.21875″ |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | V-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.099
