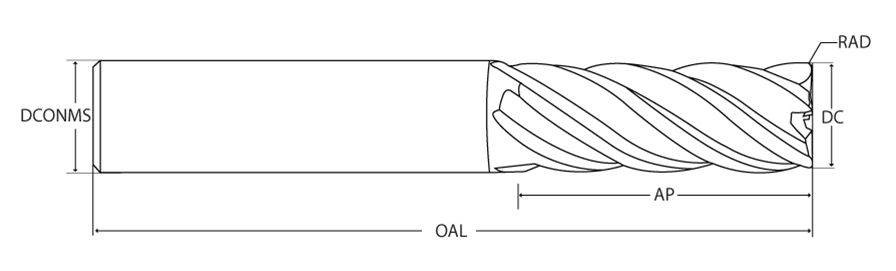

1 1/4X1 1/4X3X6 7FL_.060R
Corner Radius End Mill; 1-1/4″ Dia. × 3″ LOC × 1-1/4″ Shank Dia. × 6″ OAL ; 7 FL ; Carbide ; AlTiN ; Series 429
| Cutting Diameter (DC) | 1-1/4″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Peripheral Effective Cutting Edge Count (ZEFP) | 7 |
| Depth of Cut Maximum (APMX) | 3″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 6″ | Maximum Feed per Tooth (fz(max)) | 0.009 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.005 ″/tooth |
| Coating | AlTiN | Length Group | Standard |
| Flute Count (NOF) | 7 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 1.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3″ | Series/List # | 429 |
| Application | Roughing | Semi Finishing | Shank Size (SS) | 1-1/4″ |
Product Features
| Family Description | 429 SERIES 7 FLUTE MEDIUM PITCH ROUGHER | Country of Origin | USA |
Shipping Info
Package Weight
4.801
