1X1X1 1/2X4X6 6FL_.060R
Corner Radius End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 6″ OAL ; 6 FL ; Carbide ; AlTiN ; Series 430

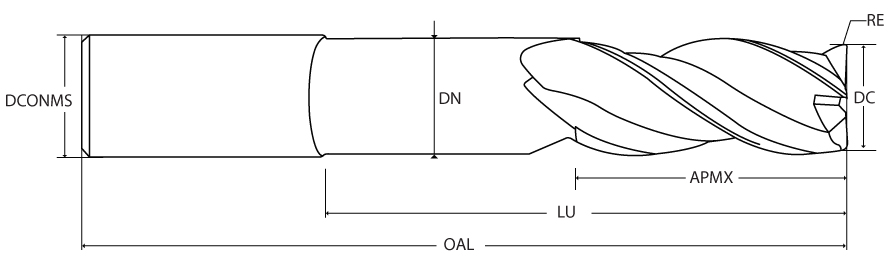

| Cutting Diameter (DC) | 1″ | Neck Diameter (DN) | 0.97 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 6″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | AlTiN | Length Group | Standard - Necked |
| Flute Count (NOF) | 6 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Necked |
| End Shape | Corner Radius | Decimal Equivalent | 1″ |
| Usable Length (LU) | 4″ | Measurement Type | Inch |
| Application | Roughing | Series/List # | 430 |
| Corner Radius (RE) | 0.06″ | Shank Size (SS) | 1″ |
Product Features
| Family Description | 430 SERIES 6 FLUTE MEDIUM PITCH NEGATIVE RAKE ROUGHER (EXT. NECK) | Country of Origin | USA |
Shipping Info
Package Weight
2.911
