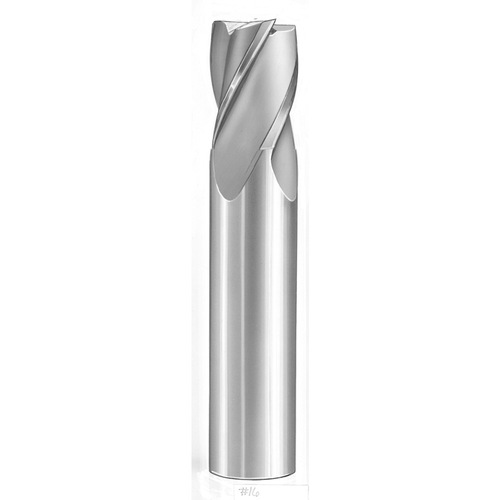

3/32 End Mill 4FL SQ - SER 16S 3/32x1/8x3/16x1-1/2
SQ End Mill; 3/32″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0″ RE ; 4 FL ; 1.313″ LBS ; Carbide ; Uncoated ; Series 16S
| Cutting Diameter (DC) | 3/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1.313″ |
| Depth of Cut Maximum (APMX) | 3/16″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Decimal Equivalent | 0.09375″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 16S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.007
