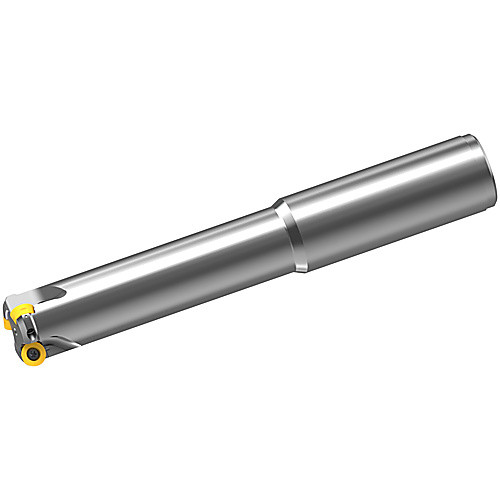

ARP5UPR2003SA20L INDEXABLE EM
Indexable End Mill; 0.858″ Dia. × 5″ LOC × 1-1/4″ Shank Dia. ; 3 FL ; Series ARP_INCH
| Cutting Diameter (DC/DCX) | 0.858″ | Functional Length (LF) | 8″ |
| Cutting Diameter (DC) | 0.858″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5″ | Series/List # | ARP_INCH |
| Ramping Angle Maximum (RMPX) | 1.9 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Head Length (LH) | 4-3/4″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.9999
