VARI 2 ER D=0.75 AP=2.25

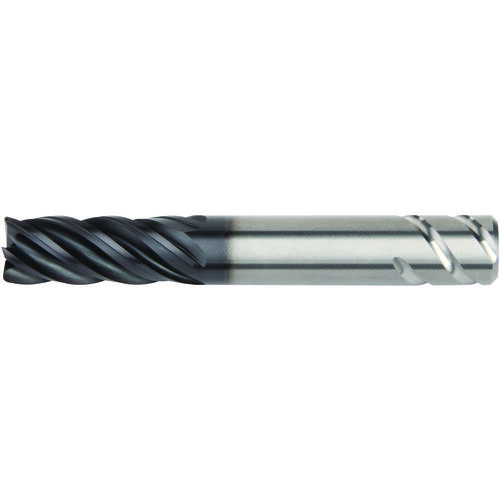

SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.06″ RE ; 0.06″ RE ; 5 FL ; 1-5/8″ LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Usable Length (LU) | 1-5/8″ |
| Overall Length (OAL) | 5″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.06″ |
| Coating | AlTiN | Tool Type | Corner Radius |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.95
