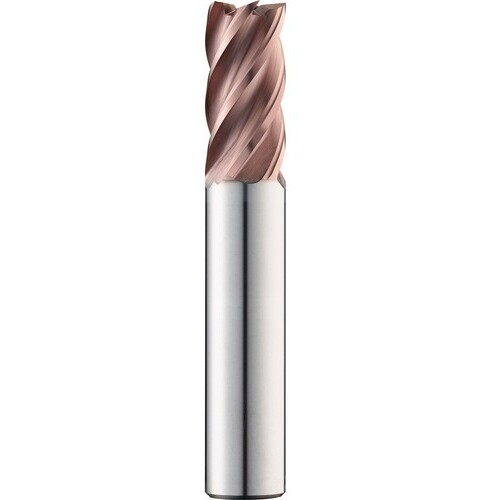

1/4 End Mill 5FL SQ TM - Z-CARB HPR 1/4x1/4x1/2x2-1/2
SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0″ RE ; 5 FL ; 2″ LBS ; Carbide ; TiSiN ; Series Z-CARB HPR
| Cutting Diameter (DC) | 1/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 2″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiSiN | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | Z-CARB HPR |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.062
