SER 43 3/16 S-CARB 9/16

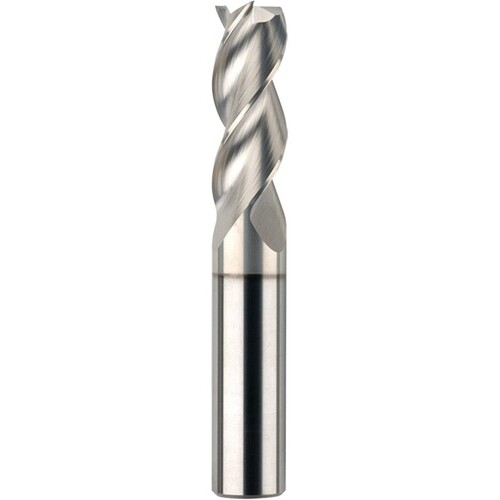

SQ End Mill; 3/16″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 0″ RE ; 3 FL ; 1-7/16″ LBS ; Carbide ; TiB2 ; Series S-CARB
| Cutting Diameter (DC) | 3/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Usable Length (LU) | 1-7/16″ |
| Depth of Cut Maximum (APMX) | 9/16″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiB2 | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | S-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.028
