SER 43 1/8 S-CARB 3/8 FL

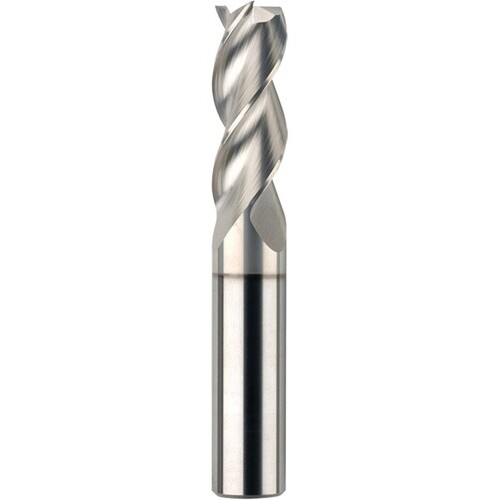

SQ End Mill; 1/8″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0″ RE ; 3 FL ; 1-1/8″ LBS ; Carbide ; TiB2 ; Series S-CARB
| Cutting Diameter (DC) | 1/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1-1/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiB2 | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | S-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
