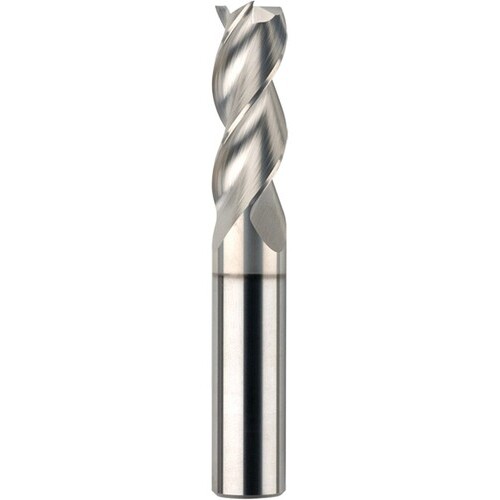

3/4 End Mill 3FL SQ TB - S-CARB 3/4x3/4x1x3
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 3″ OAL ; 0″ RE ; 3 FL ; 2″ LBS ; Carbide ; TiB2 ; Series S-CARB
| Cutting Diameter (DC) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 2″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiB2 | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | S-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.534
