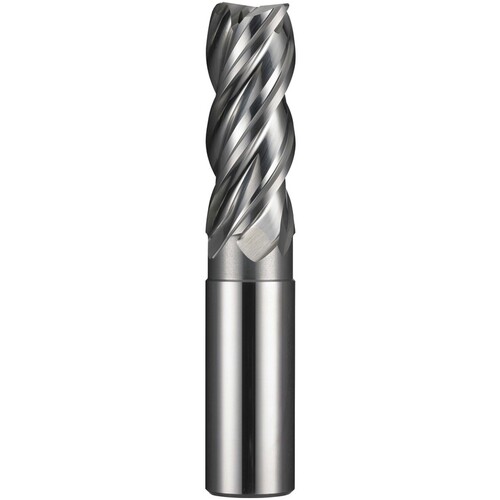

3/4 End Mill 4FL .090R TB - S-CARB APF 3/4x3/4x1-7/8x4-1/4
SQ End Mill; 3/4″ Dia. × 1-7/8″ LOC × 3/4″ Shank Dia. × 4-1/4″ OAL ; 4 FL ; Carbide ; TiB2 ; Series S-CARB
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 2-3/8″ |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 4-1/4″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiB2 | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | S-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.806
