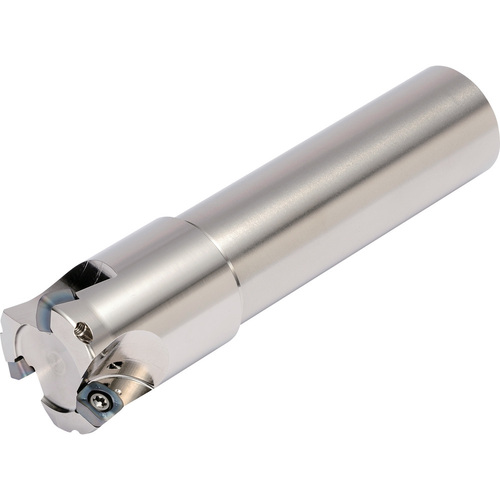

MFH1000W100-10-2T 1.00 INDX EM
Indexable End Mill; 1″ Dia. × 0.1378″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 2 FL ; Weldon Shank ; Series MFH-RAPTOR

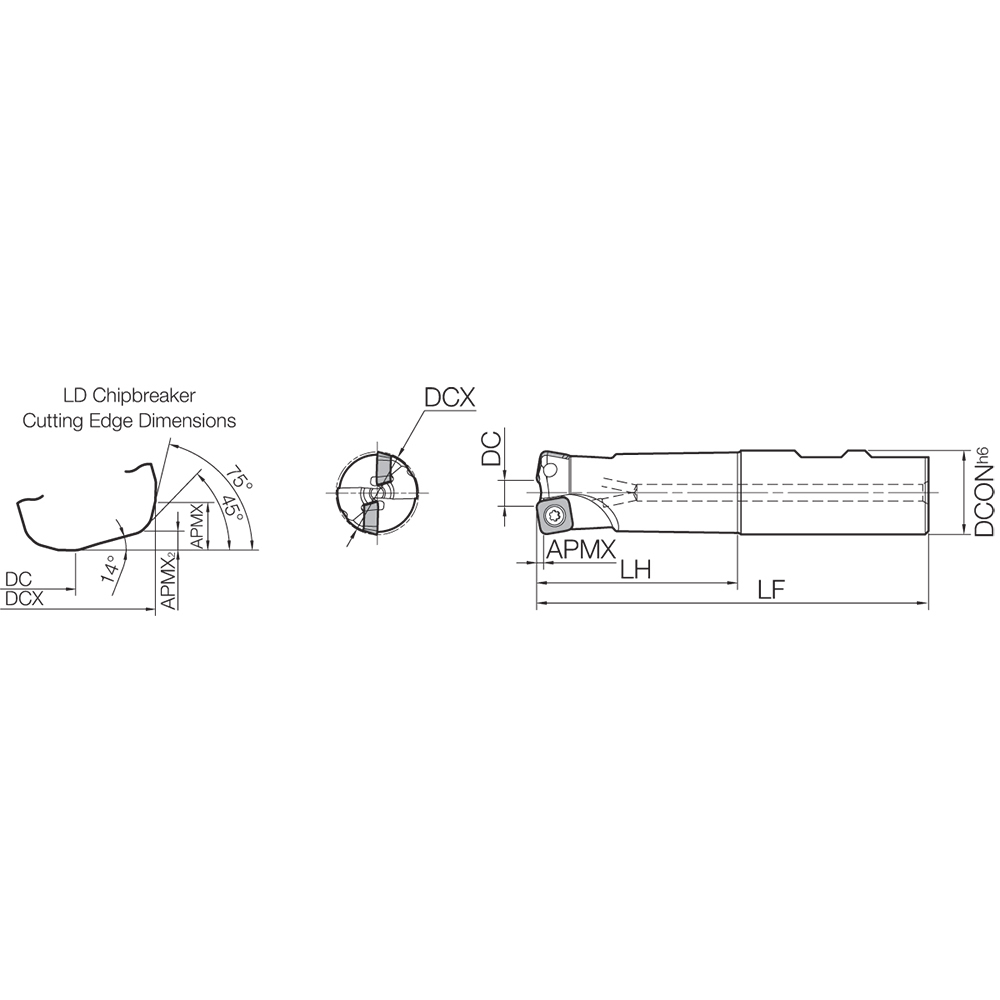

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 3.173″ |
| Cutting Diameter (DC) | 1″ | Tool Type | High Feed End Mill |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.1378″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5-1/2″ | Style | MFH |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Angle | 10 Degrees |
| Application | Facing | Shouldering | Slotting | Ramping | Helical Milling | Plunging | Series/List # | MFH-RAPTOR |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | SOMT100420ER-GM | SOMT100420ER-LD | SOMT100420ER-FL |
Product Features
| Family Description | Alternate Manufacture # MFH1000W100102T | Country of Origin | USA |
Shipping Info
Package Weight
.9999
