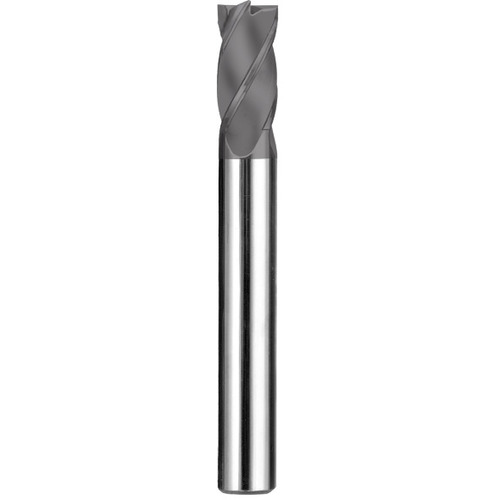

4.0 End Mill 4FL SQ TA - SER 01S 4x4x14x50
SQ End Mill; 4 mm Dia. × 14 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 0 mm RE ; 4 FL ; 36 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 4 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 14 mm | Usable Length (LU) | 36 mm |
| Overall Length (OAL) | 50 mm | Corner Radius (RE) | 0 mm |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.023
