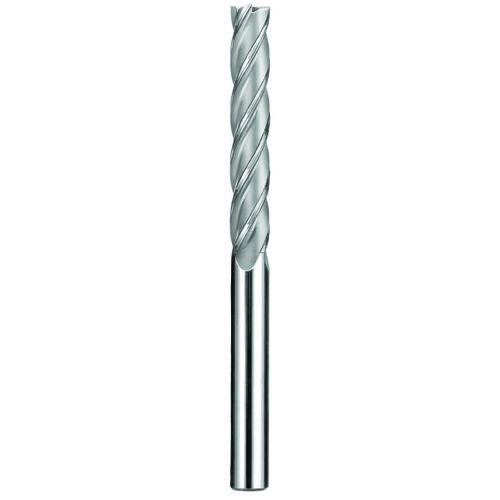

14.0 End Mill 4FL SQ - SER X1S 14x14x75x150
SQ End Mill; 14 mm Dia. × 75 mm LOC × 14 mm Shank Dia. × 150 mm OAL ; 4 FL ; Carbide ; Uncoated ; Series X1S
| Cutting Diameter (DC) | 14 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 75 mm |
| Depth of Cut Maximum (APMX) | 75 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 150 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Decimal Equivalent | 0.5512″ |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | X1S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.618
