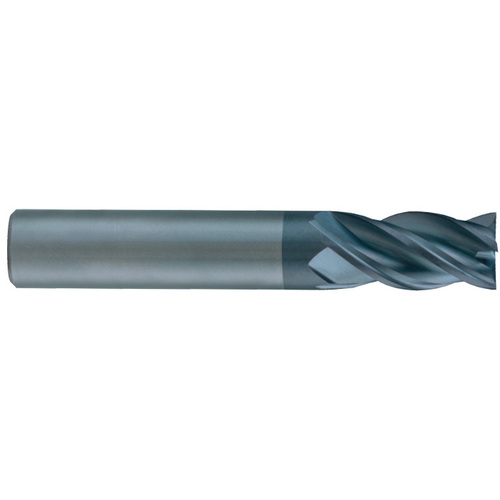

Z1 1/2 SQUARE TA WF
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 2″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Weldon |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.274
