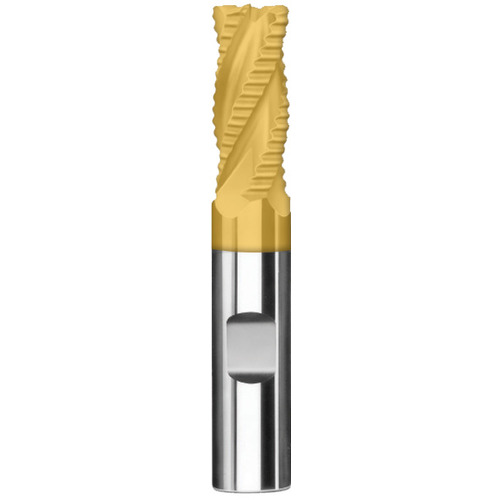

3/4 End Mill 4FL .060R TN WF - SER 61S 3/4x3/4x1-5/8x4
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; TiN
| Cutting Diameter (DC) | 3/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Usable Length (LU) | 2-3/8″ |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.814
