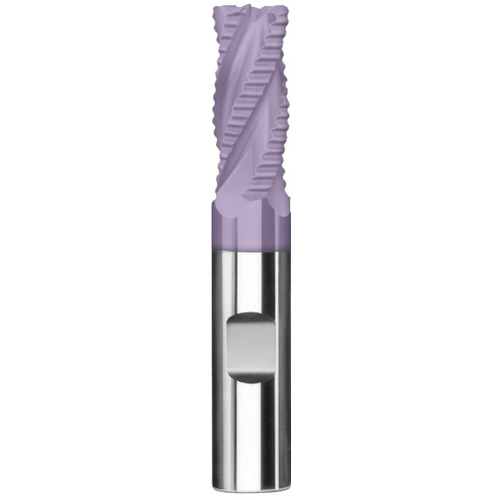

5/16 End Mill 3FL .045R TC - SER 61S 5/16x5/16x3/4x2-1/2
SQ End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ | Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.045″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiCN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.093
