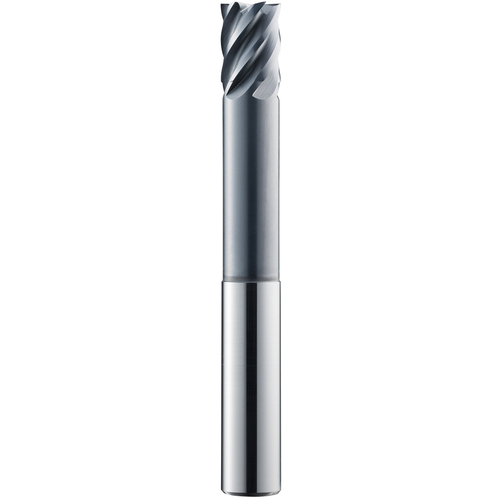

1″ End Mill 6FL SQ TX - T-CARB 1x1x1-1/4x6
SQ End Mill; 1″ Dia. × 1-1/4″ LOC × 1″ Shank Dia. × 6″ OAL ; 6 FL ; Carbide ; AlTiN ; Series T-CARB
| Cutting Diameter (DC) | 1″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 2-5/8″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 6″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 41 Degrees | Series/List # | T-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.296
