EM-0500-09 0

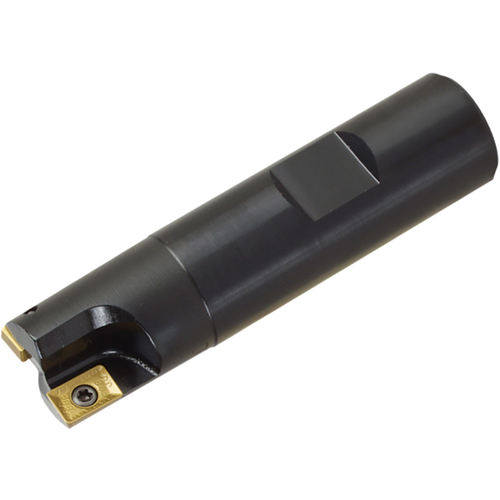

Indexable End Mill; 1/2″ Dia. × 1/2″ Shank Dia. × 2.78″ OAL × 0.37″ LU ; 1 FL ; Weldon Shank ; Series EM
| Cutting Diameter (DC/DCX) | 1/2″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 0.37″ |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 1 |
| Overall Length (OAL) | 2.78″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Style | EM |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Series/List # | EM |
| Master Insert Identification (MIID) | XPMT090208 | Measurement Type | Inch |
| Head Length (LH) | 1″ |
Product Features
| Family Description | Alternate Manufacture # EM050009 | Country of Origin | USA |
Shipping Info
Package Weight
.9900
