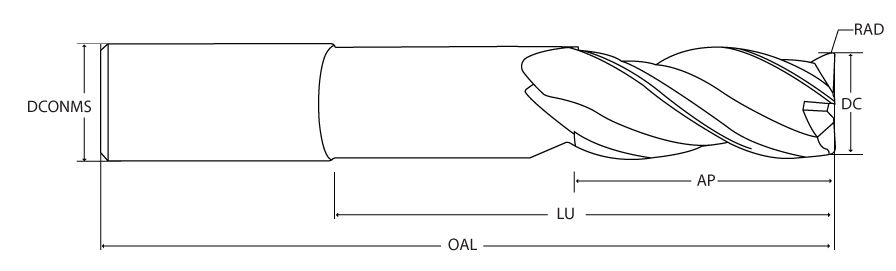

3/8X3/8X3/4X2 1/8X4 4FL__
SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 4 FL ; 2-1/8″ LBS ; Carbide ; TiAICN ; Series 423
| Cutting Diameter (DC) | 3/8″ | Neck Diameter (DN) | 0.36 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | Maximum Feed per Tooth (fz(max)) | 0.0025 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0015 ″/tooth |
| Coating | TiAICN | Length Group | Standard - Necked |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 20 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Necked |
| End Shape | Corner Radius | Decimal Equivalent | 0.375″ |
| Usable Length (LU) | 2-1/8″ | Measurement Type | Inch |
| Application | Roughing | Semi Finishing | Series/List # | 423 |
| Corner Radius (RE) | 0.03″ | Shank Size (SS) | 3/8″ |
| Grade | A5009 Varianta Supral |
Product Features
| Family Description | 423 SERIES 4 FLUTE FINE PITCH ROUGHER WITH 20° HELIX (EXT. NECK) | Country of Origin | USA |
Shipping Info
Package Weight
0.272
