5/16X5/16X1/2X2 4FL RH_
SQ End Mill; 5/16″ Dia. × 1/2″ LOC × 5/16″ Shank Dia. × 2″ OAL ; 0.03″ RE ; 4 FL ; 1/2″ LBS ; Carbide ; TiAICN ; Series 423

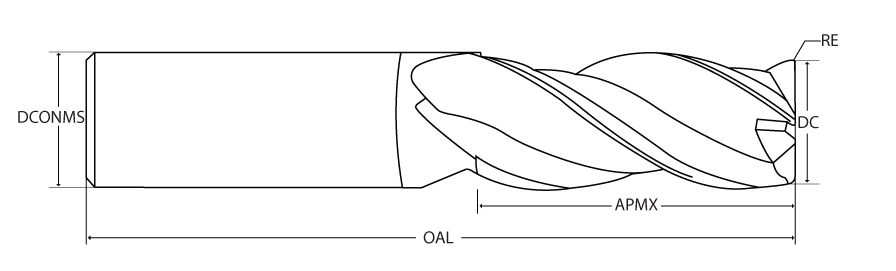

| Cutting Diameter (DC) | 5/16″ | Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2″ | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | TiAICN | Length Group | Stub |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 20 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.3125″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Series/List # | 423 |
| Application | Roughing | Semi Finishing | Shank Size (SS) | 5/16″ |
| Corner Radius (RE) | 0.03″ |
Product Features
| Family Description | 423 SERIES 4 FLUTE FINE PITCH ROUGHER WITH 20° HELIX | Country of Origin | USA |
Shipping Info
Package Weight
0.1
