5/8X5/8X3/4X3 5FL .030R

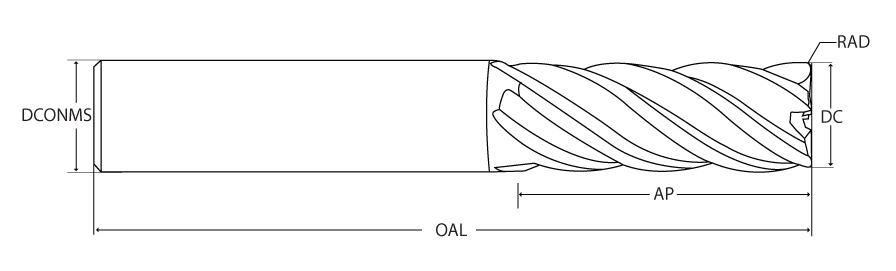

Corner Radius End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 3″ OAL ; 5 FL ; Carbide ; TiAICN ; Series 429
| Cutting Diameter (DC) | 5/8″ | Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Coating | TiAICN | Length Group | Stub |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/4″ | Series/List # | 429 |
| Application | Roughing | Semi Finishing | Shank Size (SS) | 5/8″ |
| Corner Radius (RE) | 0.03″ |
Product Features
| Family Description | 429 SERIES 5 FLUTE MEDIUM PITCH ROUGHER | Country of Origin | USA |
Shipping Info
Package Weight
0.6
