1/2X1/2X7/8X3 1/8X5 5FL_

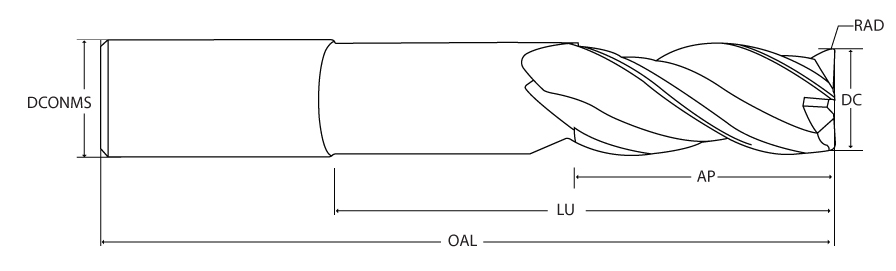

Corner Radius End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 5 FL ; Carbide ; TiAICN ; Series 429
| Cutting Diameter (DC) | 1/2″ | Neck Diameter (DN) | 0.48 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Depth of Cut Maximum (APMX) | 7/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | TiAICN | Length Group | Long - Necked |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Necked |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 3-1/8″ | Measurement Type | Inch |
| Application | Roughing | Semi Finishing | Series/List # | 429 |
| Corner Radius (RE) | 0.03″ | Shank Size (SS) | 1/2″ |
| Grade | A5009 Varianta Supral |
Product Features
| Family Description | 429 SERIES 5 FLUTE MEDIUM PITCH ROUGHER (EXT. NECK) | Country of Origin | USA |
Shipping Info
Package Weight
0.606
