5/8X5/8X1X3X5 4FL_.030R
Corner Radius End Mill; 5/8″ Dia. × 1″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; TiAICN ; Series 430

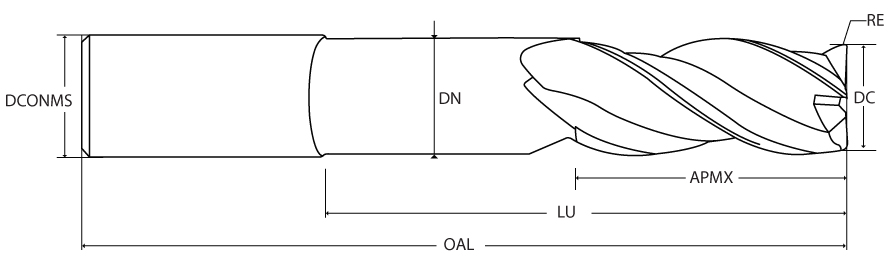

| Cutting Diameter (DC) | 5/8″ | Neck Diameter (DN) | 0.6 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | TiAICN | Length Group | Standard - Necked |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Necked |
| End Shape | Corner Radius | Decimal Equivalent | 0.625″ |
| Usable Length (LU) | 3″ | Measurement Type | Inch |
| Application | Roughing | Series/List # | 430 |
| Corner Radius (RE) | 0.03″ | Shank Size (SS) | 5/8″ |
| Grade | A5009 Varianta Supral |
Product Features
| Family Description | 430 SERIES 4 FLUTE MEDIUM PITCH NEGATIVE RAKE ROUGHER (EXT. NECK) | Country of Origin | USA |
Shipping Info
Package Weight
0.947
