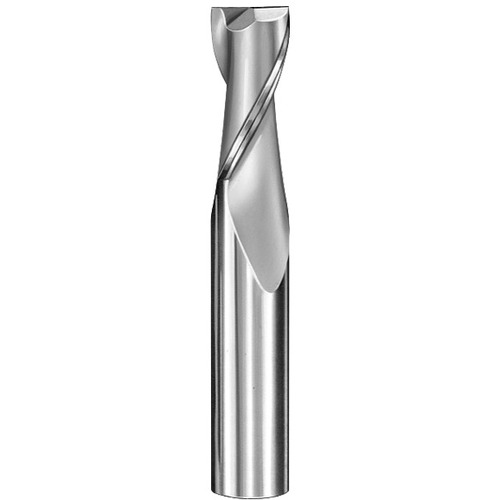

1/8 End Mill 2FL SQ - SHEAR-CARB 1/8x1/8x7/16x1-1/2
SQ End Mill; 1/8″ Dia. × 7/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 7/16″ | Usable Length (LU) | 1.063″ |
| Overall Length (OAL) | 1-1/2″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.012
