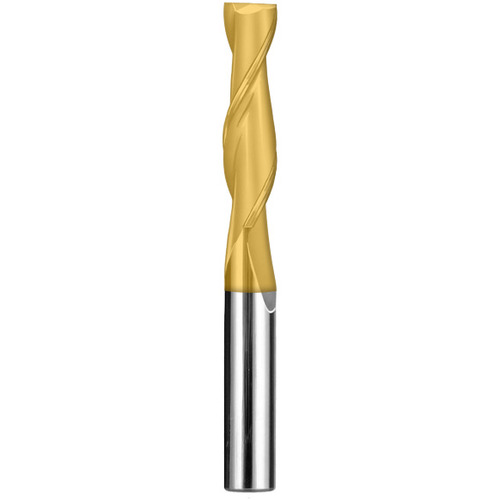

1/8 End Mill 2FL SQ TN - SER L3S 1/8x1/8x3/4x2-1/4
SQ End Mill; 1/8″ Dia. × 3/4″ LOC × 1/8″ Shank Dia. × 2-1/4″ OAL ; 2 FL ; Carbide ; TiN ; Series L3S
| Cutting Diameter (DC) | 1/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-1/4″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | L3S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.018
