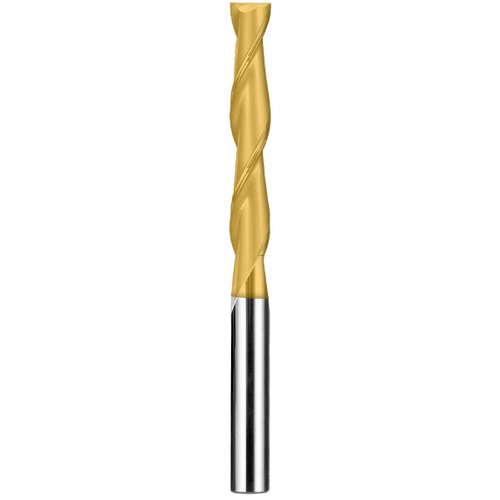

3/16 End Mill 2FL SQ TN - SER E3S 3/16x3/16x1-1/8x3
SQ End Mill; 3/16″ Dia. × 1-1/8″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; TiN ; Series E3S
| Cutting Diameter (DC) | 3/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Usable Length (LU) | 1-7/8″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiN | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | E3S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.043
