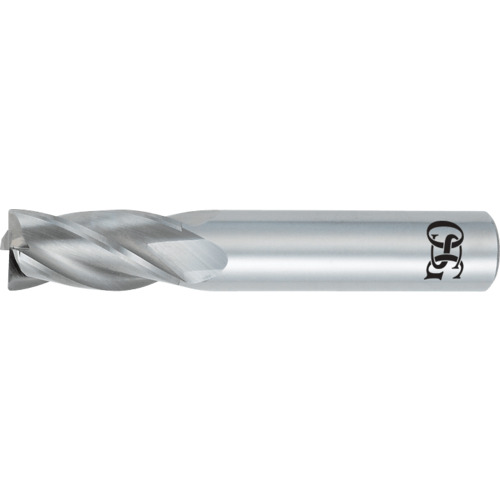

5/16 × 5/16 .020R 4FL SC EM TIALN
Corner Radius End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 496
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 13/16″ | Tool Type | High Performance |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Series/List # | 496 |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.35000
Package Width
.55000
Package Weight
.0900
