1TJ1B-06008TRR01

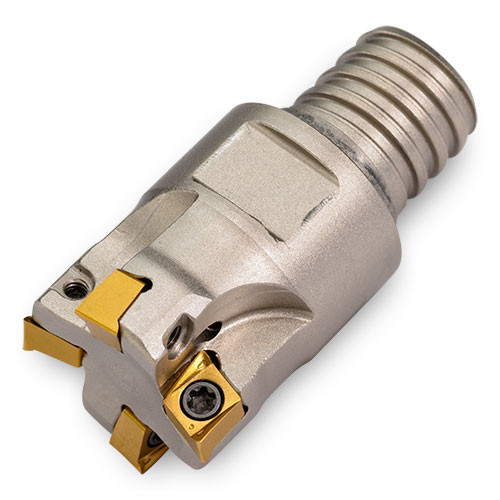

Indexable End Mill; 5/8″ Dia. × 0.14″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 5/8″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.14″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Hub Diameter (DHUB) | 0.6″ |
| Functional Length (LF) | 0.8″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: .008″ .015″ .031″ R & Hi-Feed | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.187
