12X30 75 1.0R 6FL H-45

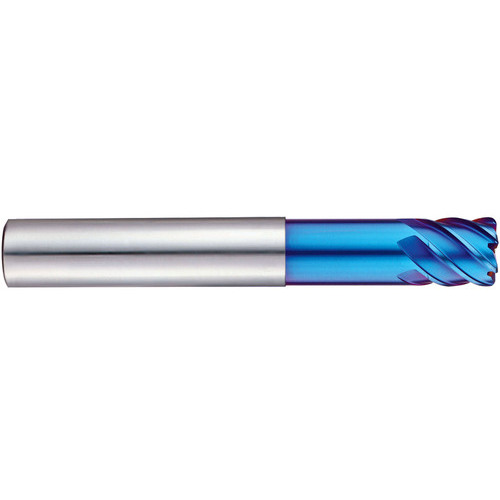

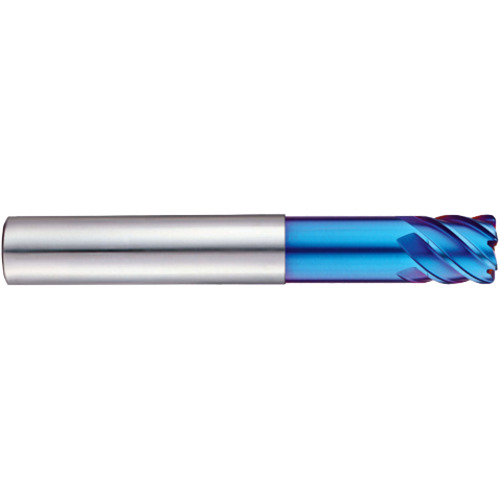

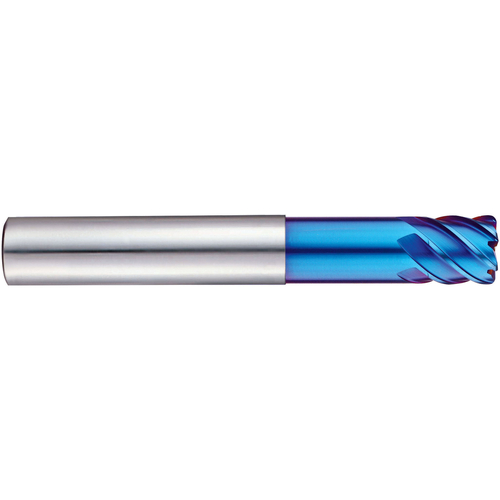

SQ End Mill; 12 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 75 mm OAL ; 1 mm RE ; 6 FL ; 30 mm LBS ; Carbide ; AlTiSiN ; Series G8A39
| Cutting Diameter (DC) | 12 mm | Usable Length (LU) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Steel | Hard Materials | |
| Depth of Cut Maximum (APMX) | 12 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 75 mm | Neck Diameter (DN) | 11.7 mm |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4724″ |
| Coating | AlTiSiN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | G8A39 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.272
