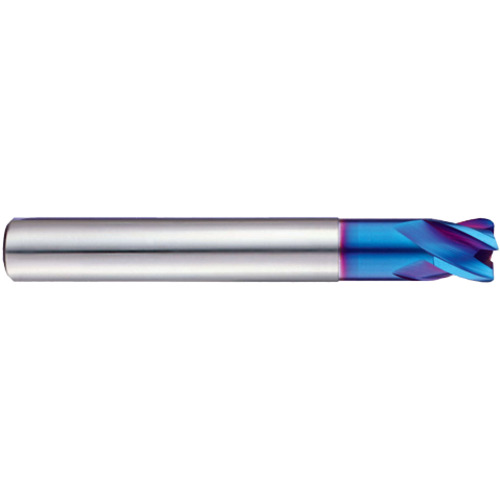

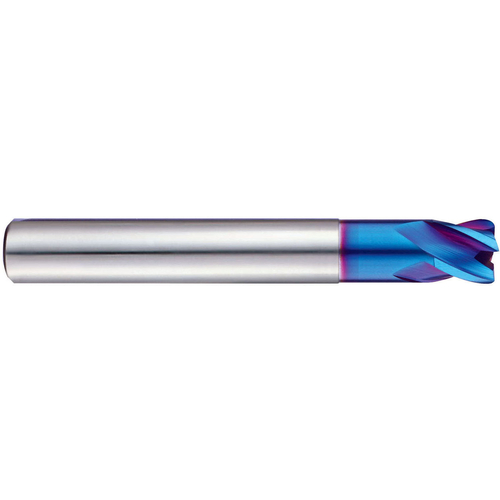

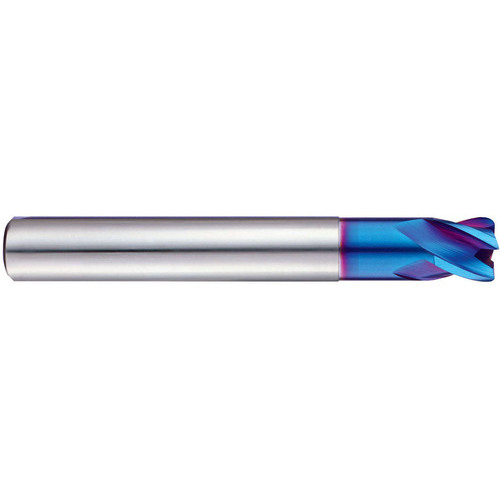

Corner Radius End Mill; 1 mm Dia. × 1.5 mm LOC × 6 mm Shank Dia. × 40 mm OAL ; 4 FL ; Carbide ; Blue Coating ; Series G8A37
SQ End Mill; 1 mm Dia. × 1.5 mm LOC × 6 mm Shank Dia. × 40 mm OAL ; 0.1 mm RE ; 4 FL ; Carbide ; AlTiSiN ; Series G8A37
| Cutting Diameter (DC) | 1 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Hard Materials | |
| Depth of Cut Maximum (APMX) | 1.5 mm | Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 40 mm | Decimal Equivalent | 0.0394″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiSiN | Series/List # | G8A37 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0
