4552G 1/4 × 3/8 4FL SE

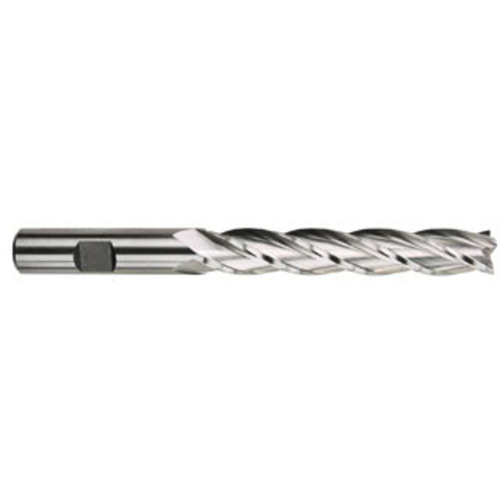

SQ End Mill; 1/4″ Dia. × 1-3/4″ LOC × 3/8″ Shank Dia. × 3-9/16″ OAL ; 4 FL ; 1-3/4″ LBS ; HSS ; TiN ; Series 4552G
| Cutting Diameter (DC) | 1/4″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Length Group | Extra Long |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-9/16″ | Style | Finishing |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.25″ |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 4552G |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Center Cutting | Center Cutting | Yes |
| Usable Length (LU) | 1-3/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.08
