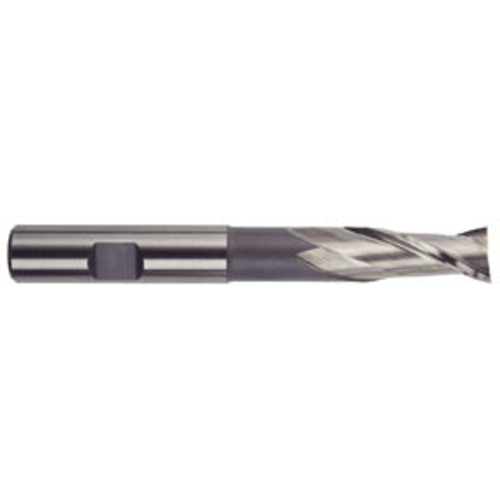

3/8″ × 3/8″ × 3/4″ × 3 5/16″ 2 Flute Single End HSS Finishing Center Cutting End Mill-TiN Series/List #1899G
SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3-5/16″ OAL ; 2 FL ; 1-3/4″ LBS ; HSS ; TiN ; Series 1899G
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Single End |
| Overall Length (OAL) | 3-5/16″ | Length Group | Extended |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 1899G |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Weight
0.065
