12J1A010015T1R00

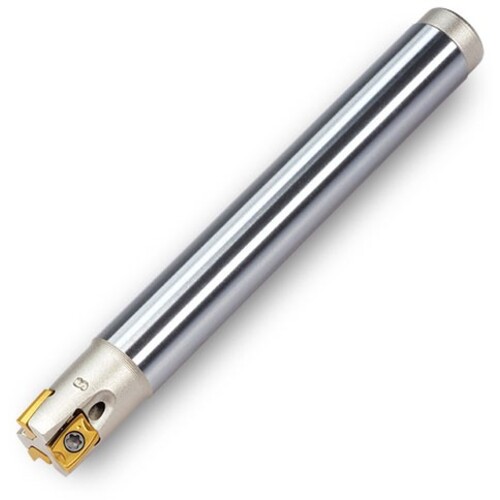

Indexable End Mill; 0.394″ Dia. × 0.197″ LOC × 0.394″ Shank Dia. × 3.15″ OAL × 0.591″ LU ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.394″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 0.394″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 0.591″ |
| Depth of Cut Maximum (APMX) | 0.197″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 3.15″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: 0.2 mm R & Hi-Feed V-Bottom pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | Germany |
Shipping Info
Package Weight
0.094
