22J3G080074F3R01

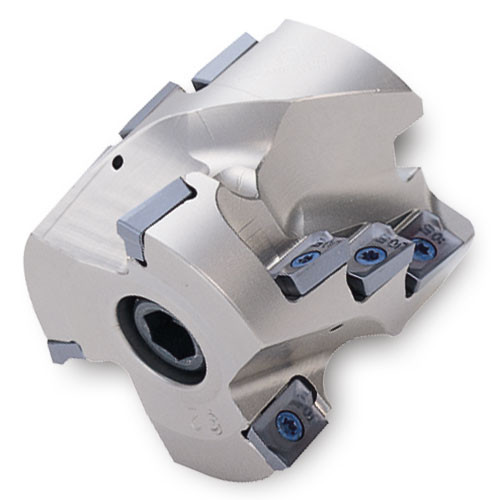

Indexable End Mill; 3.15″ Dia. × 2.913″ LOC × 1.26″ Shank Dia. × 3.74″ OAL ; 5 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3.15″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 3.15″ | Flute Count (NOF) | 5 |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 2.913″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3.74″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.3 Degrees | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Produces smooth blend between stations (visible line but no step on side wall) 32-63 Ra surface finishes when engaging the wiper (WEP) Insert Corner: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8 & 6.4 R | Country of Origin | Germany |
Shipping Info
Package Weight
5.591
