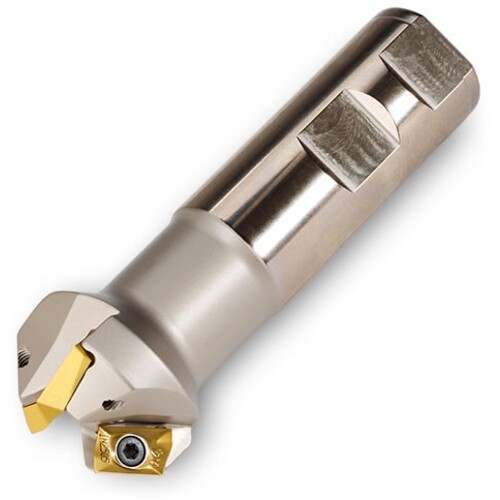

12M1R020044W5R00 EM
Indexable End Mill; 1.256″ Dia. × 0.406″ LOC × 0.984″ Shank Dia. × 3.937″ OAL ; 4 FL ; Round Shank ; 60 Degrees
| Cutting Diameter (DC/DCX) | 1.256″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 0.787″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.406″ | Body Diameter (BD) | 1.268″ |
| Overall Length (OAL) | 3.937″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1.256″ |
Product Features
| Family Description | 11mm cutting edge length 13mm Insert with 2 indexes | Country of Origin | Germany |
Shipping Info
Package Weight
0.727
