1TG1J-15016E2R01

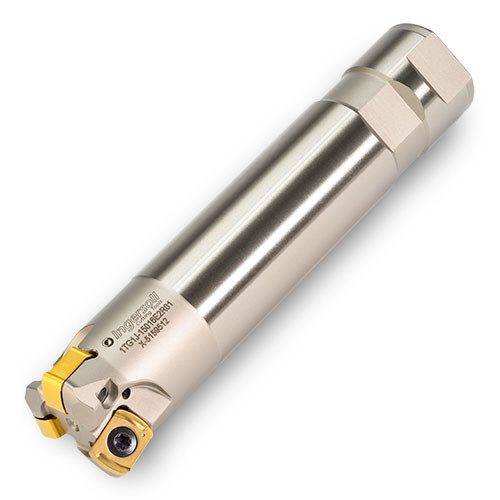

Indexable End Mill; 1-1/2″ Dia. × 0.078″ LOC × 1-1/4″ Shank Dia. × 6″ OAL × 1.6″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Corner Radius (RE) | 0.12″ |
| Cutting Diameter (DC) | 0.95″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.078″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.54 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 1.69″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Usable Length (LU) | 1.6″ |
Product Features
| Family Description | Two different insert edge preparations provide application flexibility Excellent high-feed performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
