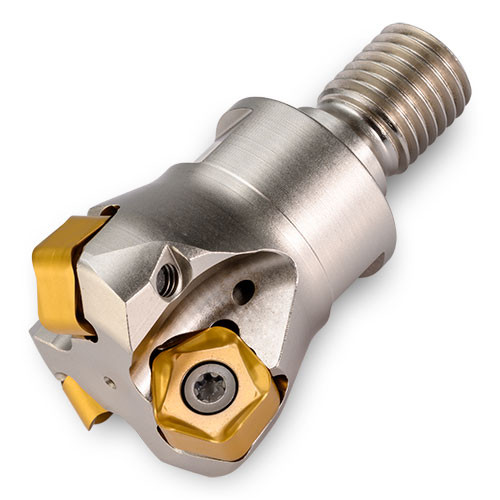

1DP1P-15020X9R01
Indexable End Mill; 1-1/2″ Dia. × 0.118″ LOC ; 25 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.85″ | Tool Cutting Edge Angle (KAPR) | 25 Degrees |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Hub Diameter (DHUB) | 1.41″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 2″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Corner Radius (RE) | 0.21″ |
Product Features
| Family Description | Same insert fits Hi-Feed & 65° MIlls Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities High ramping capability Great price-per-edge economy! | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.002
