1DP1C-07015S7R01

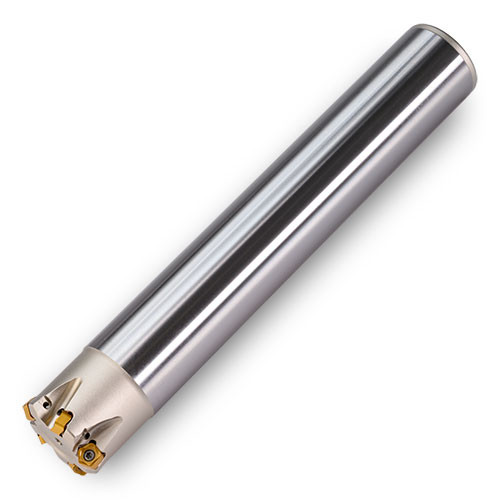

Indexable End Mill; 3/4″ Dia. × 0.059″ LOC × 3/4″ Shank Dia. × 6″ OAL × 1.38″ LU ; 26 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Corner Radius (RE) | 0.1″ |
| Cutting Diameter (DC) | 0.431″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 26 Degrees |
| Depth of Cut Maximum (APMX) | 0.059″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 3/4″ |
| Usable Length (LU) | 1.38″ |
Product Features
| Family Description | Same insert fits Hi-Feed & 65° MIlls Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities High ramping capability Great price-per-edge economy! | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.661
